P 9.7" LED Field Monitor with Advanced Functions for Full HD Camcorder
Product Category: 9.7 Inch
Views: 1

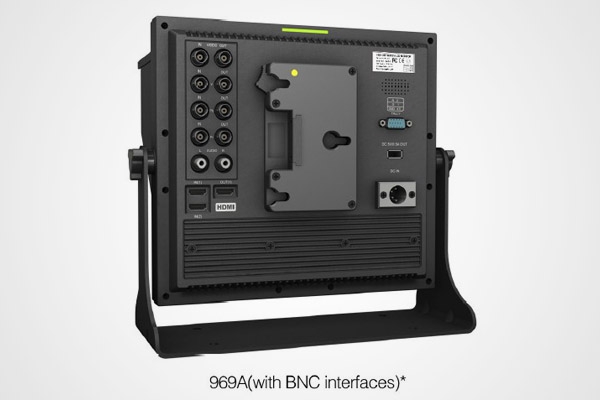

969A/P
9.7" LED Field Monitor with Advanced Functions for Full HD Camcorder.
with BNC interfaces, without HDMI output

969A/O/P
9.7" LED Field Monitor with Advanced Functions for Full HD Camcorder.
with BNC interfaces, HDMI output

Functions:
Wide viewing angles,
High resolution: 1024×768,
High brightness: 420cd/㎡,
High contrast: 900:1,
Dual HDMI input,

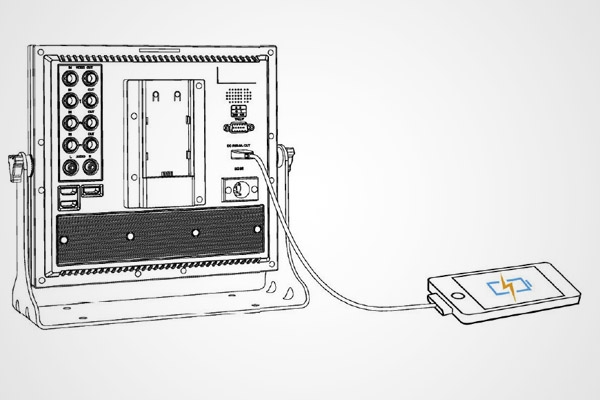

USB 5V output for charging,
Wide voltage: DC 7-24V,
TALLY interface with indicating light,
Gimbal bracket for installation,
Comply with IP52 standard.
Advanced Functions:

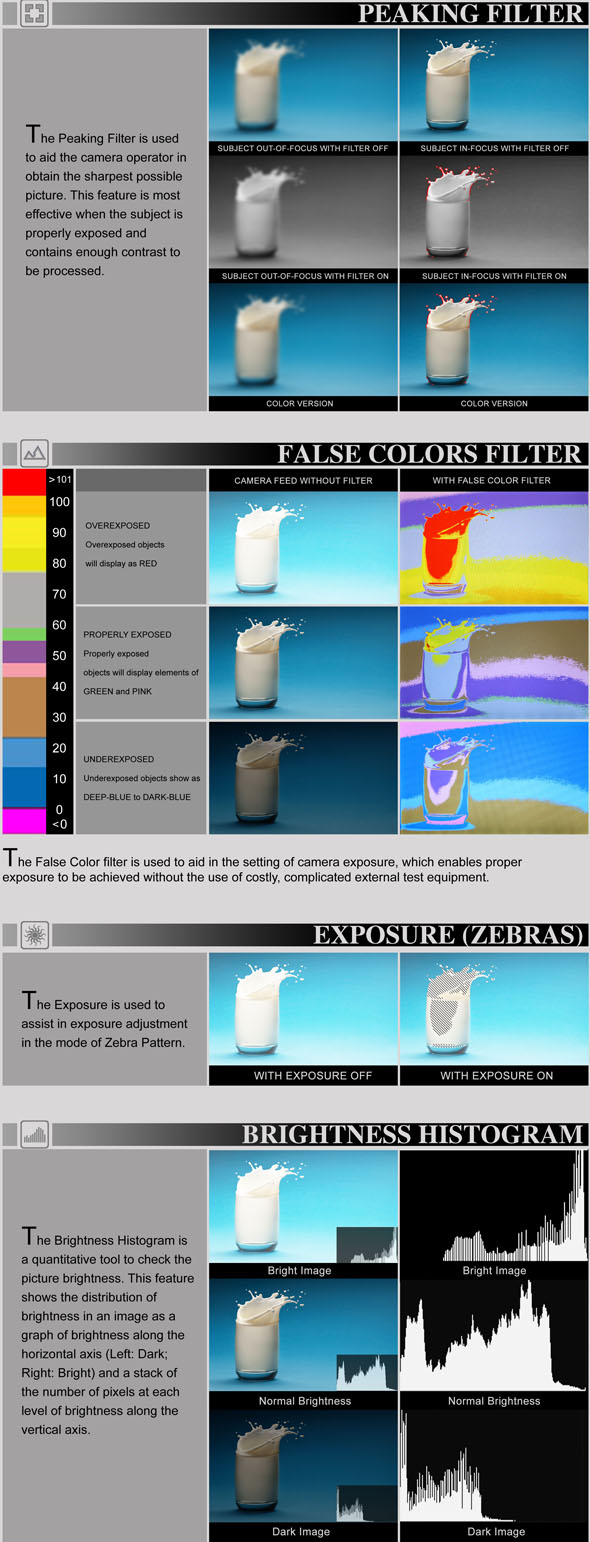

Peaking Filter, False Colors, Histogram, Exposure, Camera, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 8x Zoom, Picture-in-Picture.

Parameters:
Panel Size: 9.7"
Physical Resolution: 1024×768
Aspect Ratio: 4:3
Brightness: 420cd/㎡
Contrast: 900:1
Viewing Angle: 178°/ 178°(H/V)
Input Signal: HDMI×2, YPbPr, AV, TALLY
Output Signal: HDMI(optional), YPbPr, AV, USB(5V)
Audio: Speaker×1(built-in), Ear Phone Slot×1(built-in)
Current: ≤1500mA
Input Voltage: DC 7-24V(XLR Connector)
Battery Plate: V-mount, Anton Bauer mount, F-970, QM91D, DU21, LP-E6
Power Consumption: ≤18W
Operating Temperature: -20℃ ~ 60℃
Storage Temperature: -30℃ ~ 70℃
Dimension(LWD): 246×224×31mm/167.5mm(with cover open)
Weight: 1068g / 1388g (with cover)

Accessories:
1. Flexible folding sun shade cover: 1piece
2. Battery plate bracket: 1piece
3. Battery plate (F-970, QM91D, DU21 or LP-E6): 2pieces
4. HDMI A/A cable: 1piece
5. DC 12V power adapter (XLR connector): 1piece
6. TALLY connector: 1piece
7. Manual: 1copy
8. Gimbal bracket (optional): 1piece
9. V-mount battery plate (optional): 1piece
10. Anton Bauer mount battery plate (optional): 1piece
11. Suitcase (optional): 1piece
