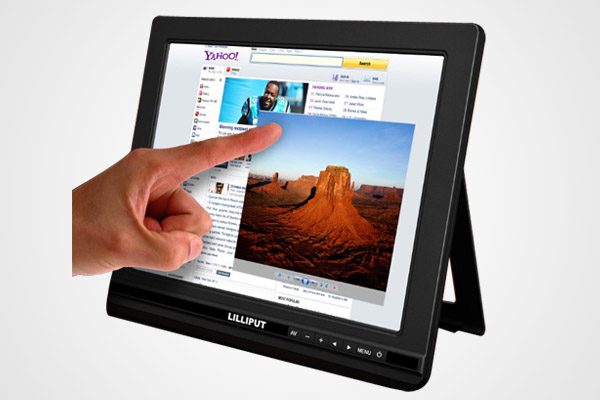

FA1000-NP/C/T
9.7'' LCD Monitor with touchscreen(5-wire Resistive)
With VGA & AV & HDMI & DVI input.
FA1000-NP/C
9.7'' LCD Monitor with touchscreen
With VGA & AV & HDMI & DVI input.
Functions:
Wide viewing angles;
High resolution: 1024x768;
High brightness: 420cd/㎡;
High contrast: 900:1;
Abundant interfaces;
5-wire resistive touch panel;
Dismountable VESA bracket;
Built-in hidden bracket;
Ultra slim & portable;
Comply with IP62 standard!
Parameters:
Panel: 9.7" LED
Physical Resolution: 1024×768, support 1920×1080
Touch Panel: 5-wire resistive
Brightness: 420cd/㎡
Contrast: 900:1
Viewing Angle: 160°/ 174°(H/V)
Input Voltage: DC 7-24V
Input Signal: HDMI, DVI, VGA, AV
HDMI Mode: 480i/p、576i/p、720p、1080i(50/60)、1080p(50/60)
Current: 560mA
Power Consumption: ≤10W
Dimension(LWD): 234.4×192.5×29mm
Weight: 625g/1125g (with VESA bracket)
Accessories:
1. HDMI Type A-C cable: 1 piece
2. 14Pin SKS+VGA cable: 1 piece
3. HDMI to DVI cable: 1 piece
4. DC 12V power adapter: 1 piece
5. Remote control: 1 piece
6. Manual: 1 copy
7. Mini USB cable (for touch): 1 piece
8. Drive disk (touch driver): 1 piece
9. Touch pen: 1 piece
10. 75mm VESA bracket (optional)
11. 75mm VESA rail slot (optional)
