UM-900/T
9.7" USB Touch Screen Monitor,
Not DC Power, Just USB Powered, Not VGA Input, Just USB Input
UM-900
9.7" USB LCD Monitor,
Not DC Power, Just USB Powered, Not VGA Input, Just USB Input
Functions:
One cable does it all
Innovation USB-only connection--add monitors without adding clutter.

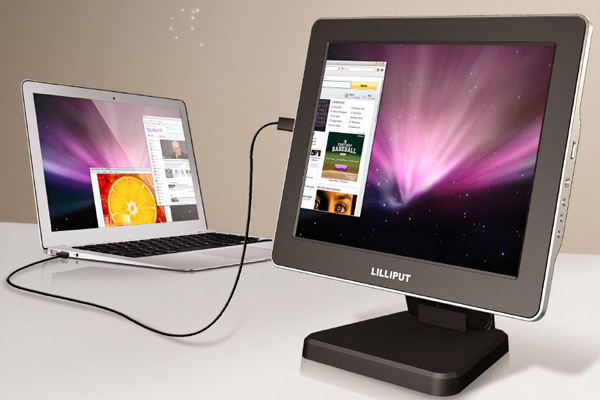

for Dual Displays as USB Monitor
Connect to any PC or laptop through USB as Sub-monitor, via DisplayLink technology.
Extend or mirror your screen. Dual displays means getting more done.
for iOS/Android Device with HDMI SYNC Output
HD application experience from iPhone 4S, iPad & other mobile devices with HDMI sync output feature.
Connect any phone or tablet PC with HDMI, as a mobile theater.
Wide viewing angles,
High resolution: 1024×768,
High brightness: 420cd/㎡,
High contrast: 900:1,
Full screen for iPhone 4S,
USB 5V for charging,
Dismountable VESA bracket,
Ultra slim & portable.
Parameters:
Panel Size: 9.7"
Physical Resolution: 1024×768
Aspect Ratio: 4:3
Brightness: 420cd/㎡
Contrast: 900:1
Viewing Angle: 178°/ 178°(H/V)
Touch Panel: 5-wire resistive(optional)
Input Signal: Mini HDMI, Mini USB(for usb monitor), USB(for keyboard or mouse)
Output Signal: USB(5V)
Audio: Speaker×2(built-in, under HDMI mode), Ear Phone Slot×1(built-in, under HDMI mode)
Input Voltage: DC 5V
Power Consumption: ≤8W
Operating Temperature: -20℃ ~ 60℃
Storage Temperature: -30℃ ~ 70℃
Dimension(LWD): 242×195×15mm
Weight: 675g / 1175g (with bracket)
Accessories:
1. HDMI A Type C cable: 1piece
2. Mini USB cable: 1piece
3. DC 5V power adapter: 1piece
4. Car power: 1piece
5. CD drive: 1piece
6. Manual: 1copy
7. 75mm VESA folding bracket: 1piece(optional)

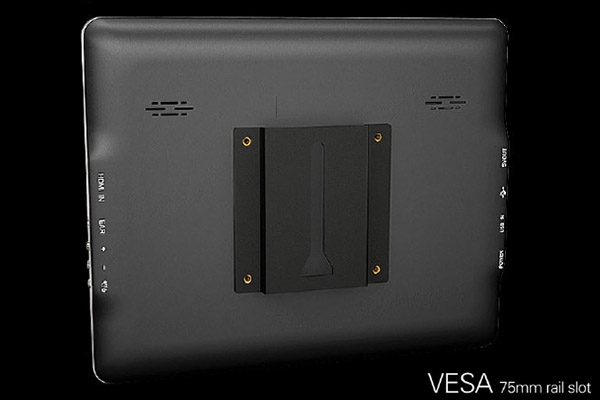

8. 75mm VESA rail slot: 1piece(optional)
