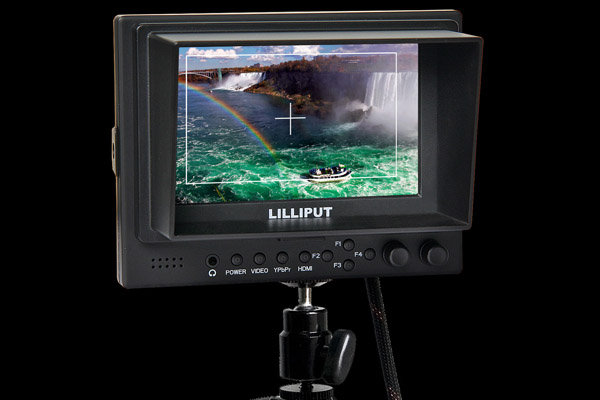

569/O
5" LCD Field Monitor with Advanced Functions for Full HD Camera
HDMI & YPBPR & AV input, Video output
569/O/P
5" LCD Field Monitor with Advanced Functions for Full HD Camera
HDMI & YPBPR & AV input, HDMI & Video output
Functions:
F1-F4, 4 user-definable buttons, default function:
F1: Peaking Filter
F2: False Colors
F3: Exposure
F4: Histogram

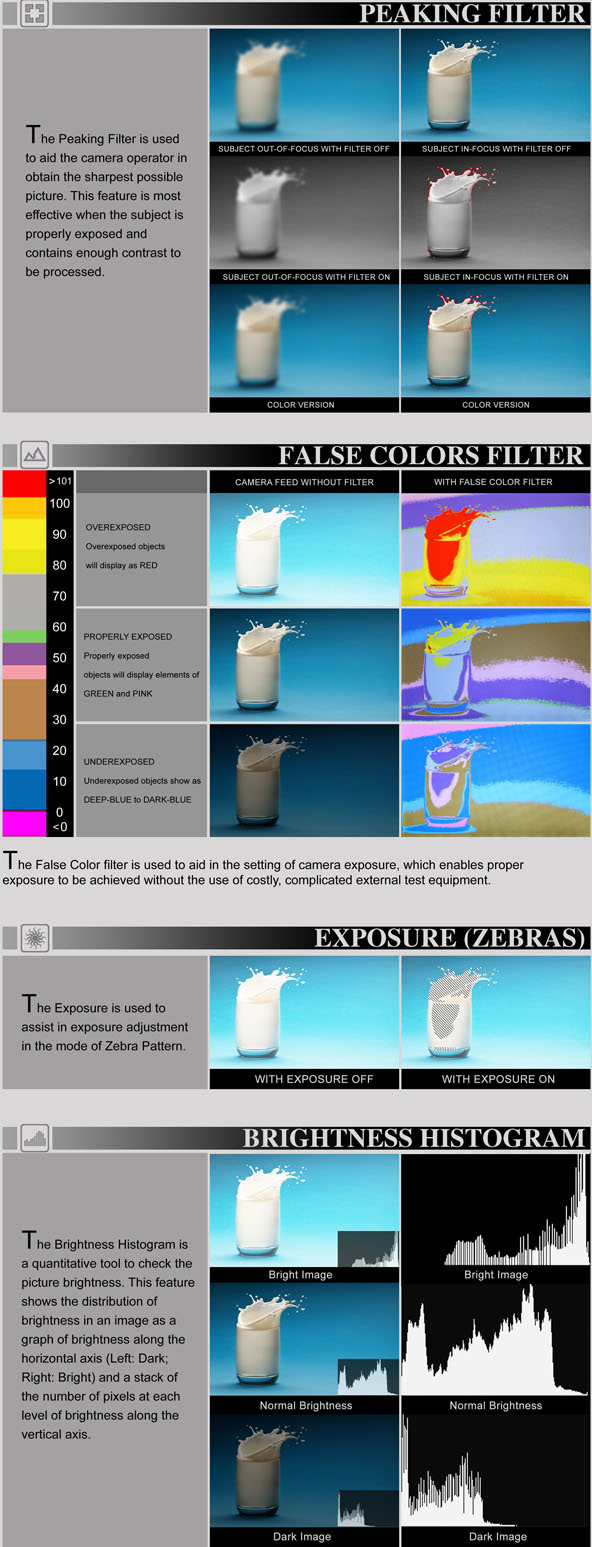

Functions:
Peaking Filter, False Colors, Histogram, Exposure,
Camera, Center Marker, Screen Marker, Aspect Ratio, Color Mode, Underscan/Overscan.
Parameters:
Panel Size: 5" TFT LCD (16:9)
Resolution: 800×480, up to 1920×1080
Brightness: 400cd/㎡
Contrast: 600:1
Viewing Angle: 150°/ 130°(H/V)
Input Voltage: DC 6-24V
Input Signal: HDMI, YPbPr, AV
Current: 450mA
Standby Current: 50mA
Power Consumption: 5.4W
Audio Output: ≥250mW
Earphone Slot: ×1 (front)
Size(LWD): 151×116×39.5mm/98.1mm (with sun shade)
Weight: 316g / 386g (with sun shade)
Accessories:

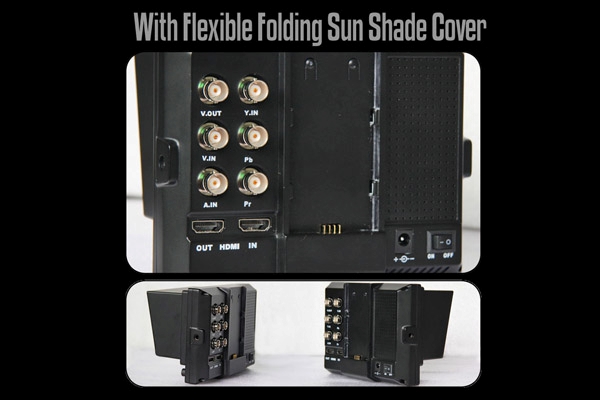

Sun shade 1piece

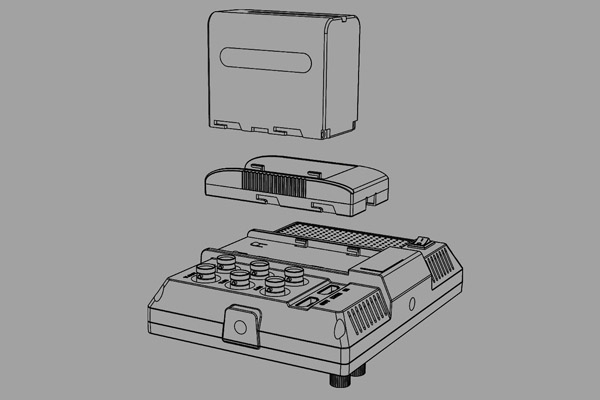

Battery Plate (DU21/QM91D/F970/LP-E6) 2piece (choose 2 out of 4)
DC adapter 1piece
Manual 1copy
Bracket 1piece
Li-ion battery (optional) 1piece
HDMI to mini HDMI cable (optional) 1piece
Shoe mount (for camera only) (optional) 1piece
