665/P

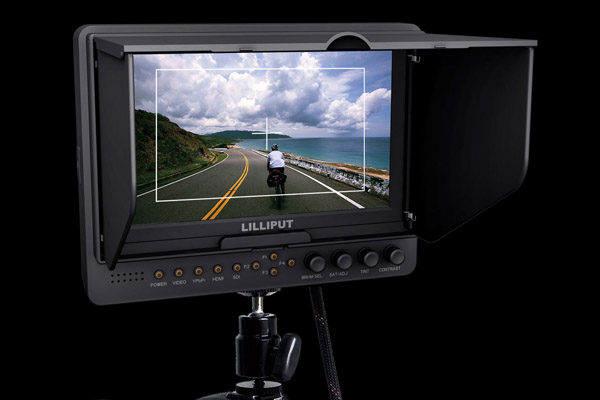

7" LCD Field Monitor Application for Full HD Camera.
With HDMI & YPBPR & AV input, Video output
665/O/P
7" LCD Field Monitor Application for Full HD Camera.
With HDMI & YPBPR & AV input, HDMI & Video output
665/S/P
7" LCD Field Monitor Application for Full HD Camera.
With 3G-SDI & HDMI & YPBPR & AV input, 3G-SDI & HDMI & Video output
Functions:

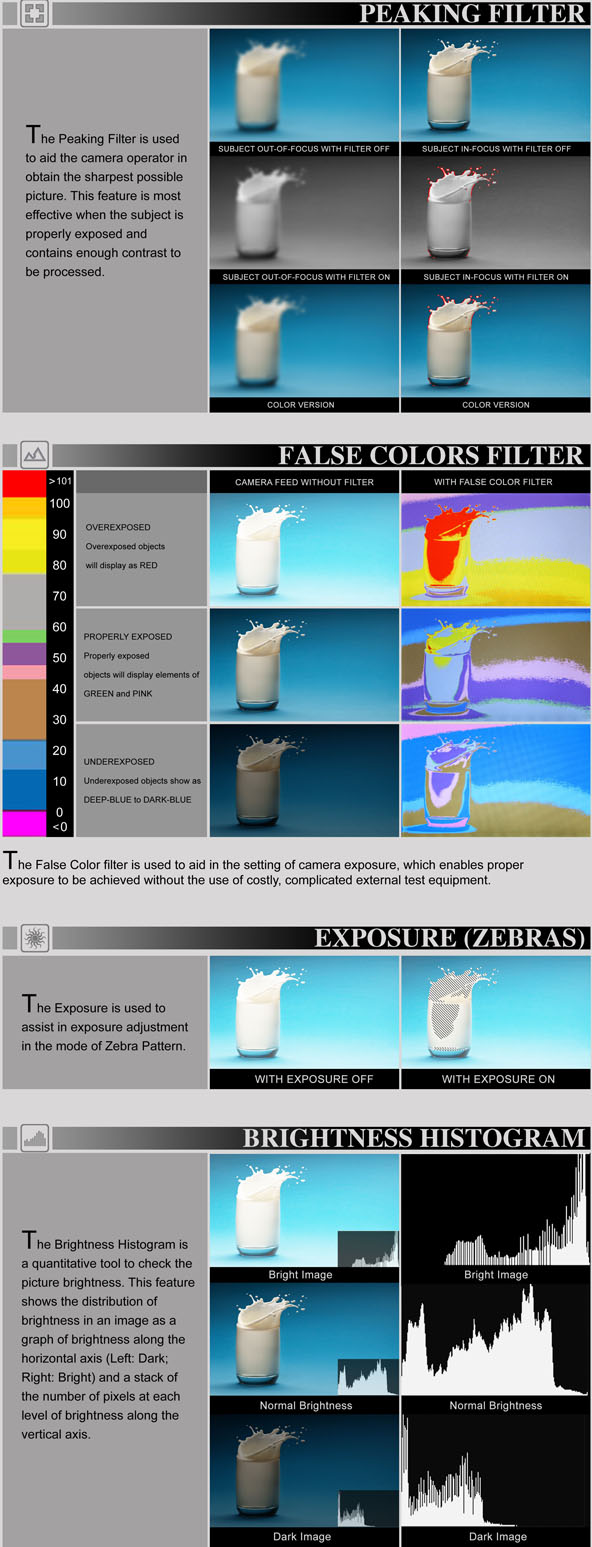

F1-F4, 4 user-definable buttons, default function:
F1: Peaking Filter
F2: False Colors
F3: Exposure
F4: Histogram
Functions:
Peaking Filter, False Colors, Histogram, Exposure, Camera, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 4x Zoom, Picture-in-Picture, Image Flip.
Parameters:
Panel Size: 7" TFT LCD (16:9)
Resolution: 1024×600, up to 1920×1080
Brightness: 250cd/㎡
Contrast: 800:1
Viewing Angle: 160°/ 150°(H/V)
Input Voltage: DC 6.5-24V (XLR DC Connection)

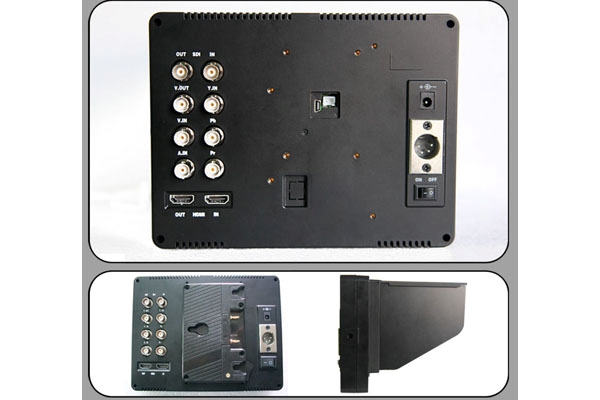

Input Signal: HDMI, YPbPr, AV, 3G-SDI (optional)
Current: 650mA
Standby Current: 50mA
Power Consumption: 7.8W
Size(LWD): 194.5×150×38.5mm
194.5×150×48.5mm (with cover closed)
194.5×150×158.5mm (with cover open)
Accessories:
1.Flexible Folding Sun Shade Cover: 1piece
2.Battery Plate (F970/QM91D): 2piece
3.DC Adapter: 1piece
4.HDMI A/C Cable: 1piece
5.Manual: 1copy
6.Battery Plate DU21 (optional): 1pieces
7.V-mount battery plate (optional): 1piece
8.Anton Bauer mount battery plate (optional): 1piece
9.Li-ion DV battery (optional): 1piece
10.Shoe Mount (for camera only)(optional): 1piece
