668GL-70NP/H/Y

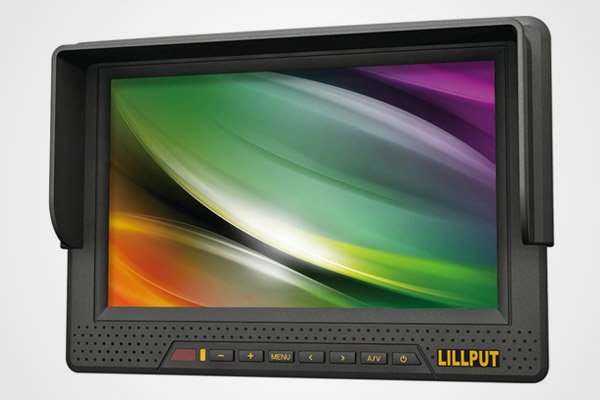

7" LCD Monitor with HDMI & YPbPr & AV Input
2200mA battery built-in
Functions:
LCD 16:9 Aspect Ratio
HDMI & YPbPr Input
Max 1920×1080 pixels
Application for Full HD Video Camera in CCTV Monitoring and Making Movies
Parameters:
Panel Size: 7" (16:9)
Resolution: 800×480, up to 1920×1080
Brightness: 450cd/㎡ (optional: 250cd/㎡)
Contrast: 500:1
Viewing Angle: 120°/ 140°(H/V)
Input Voltage: DC 12V

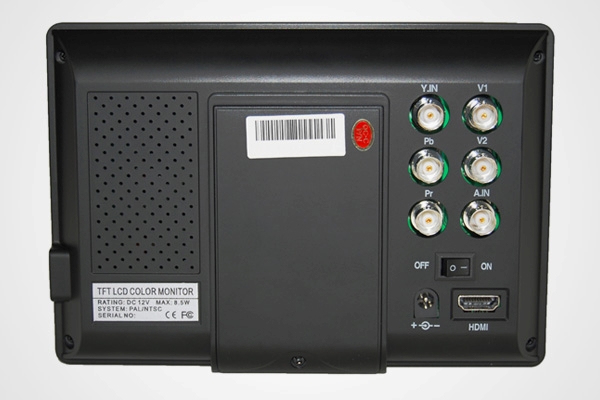

Input Signal: HDMI,YPbPr, AV

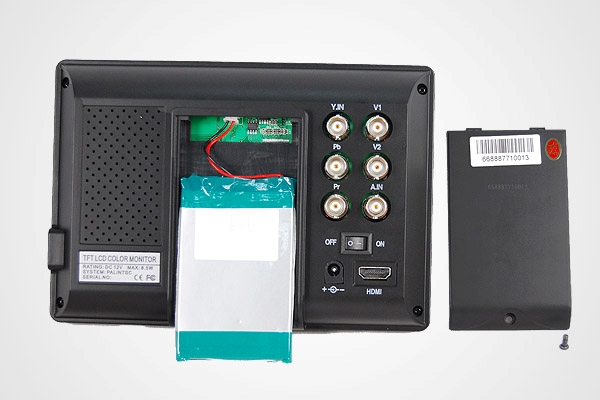

Battery: 2200mAh/7.4V (built-in)
Current: 650mA (1.2A when charging)
Standby Current: ≤50mA
Power Consumption: ≤8W
Input Resistance: 75Ω
Input Frequency: H/30-60KHz,V/60-75Hz
Audio Output: ≥250mW
Speaker: ×1(front)
Size(LWD): 188×125×33mm
194.4×134.1×63.2mm (with sun shade)
Weight: 542g / 582g (with sun shade)
Accessories:
2200mAh/7.4V Li-ion battery 1piece
Sun shade 1piece
Bracket 1piece
12V1.5A DC adapter 1piece
Remote control 1piece
Manual 1copy
Battery charger (optional) 1piece
HDMI to mini HDMI cable (optional) 1piece
Shoe mount (for camera only) (optional) 1piece
