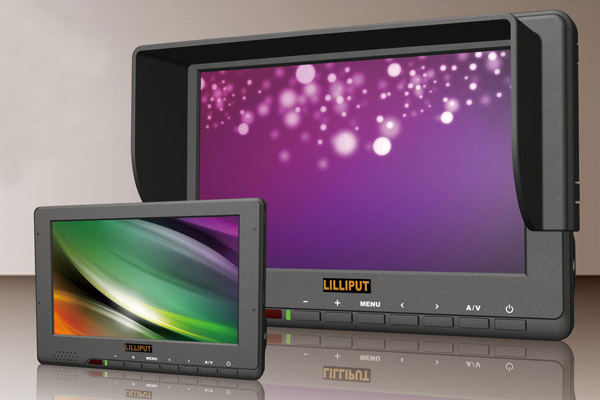

667GL-70NP/H/Y & 667GL-70NP/H/Y/S 7" LCD Monitor with HDMI & YPBPR & AV input
Product Category: 7 Inch
Views: 1

Functions:
Specific LCD Monitor by LILLIPUT Uses for Full HD Video Camera
Seizing much more clear world
Application for Full HD Video Camera in CCTV Monitoring and Making Movies

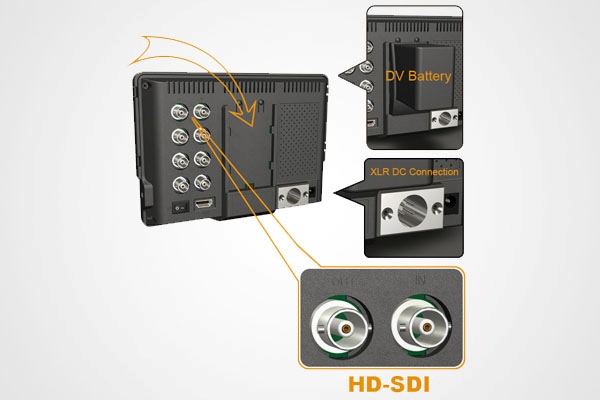

3G-SDI、HDMI & YPbPr Input, to connect with Full HD Video Camera,
LCD 16:9 Aspect Ratio, max 1920×1080 pixels,

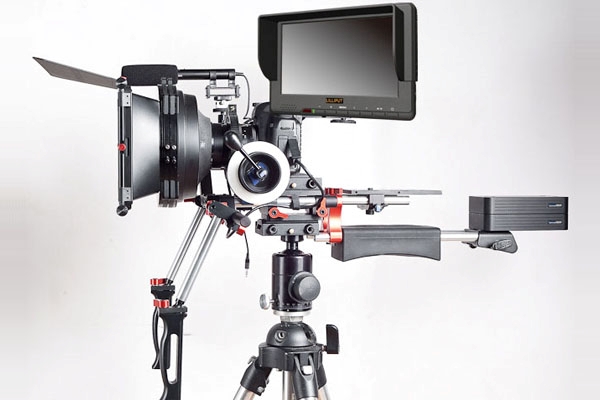

To connect with Full HD Video Camera, as sub-monitor when CCTV Monitoring or Making Movies,
High Brightness/Contrast & Dizzy-proof monitor with sun shade, to see clearly under sunshine,
Multi mounting methods to view under different angles,
High capacity rechargeable Li-ion battery, make power cables free.

Parameters:
Panel Size: 7"TFT LCD (16:9)
Resolution: 800×480, up to 1920×1080
Brightness: 450cd/㎡ (optional: 250cd/㎡)
Contrast: 500:1
Viewing Angle: 120°/ 140°(H/V)
Input Voltage: DC 12V (XLR DC Connection)
Input Signal: 3G-SDI(optional), HDMI,YPbPr, AV1/AV2
Battery: 4200mAh/7.2V (external) (optional)
Current: 650mA
Standby Current: ≤50mA
Power Consumption: ≤8W
Audio Output: ≤1W
Speaker: ×1(front)
Size(LWD): 188×131×33mm/194×134×73mm (with sun shade)
Weight: 510g / 568g (with sun shade)

Accessories:
Sun shade 1piece
DV Battery Mount Plate A 1piece
DV Battery Mount Plate B 1piece
12V1.5A DC adapter 1piece
Remote control 1piece
Manual 1copy
Bracket 1piece
4200mAh/7.2V Li-ion battery (optional) 1piece
HDMI to mini HDMI cable (optional) 1piece
Shoe mount (for camera only) (optional) 1piece
